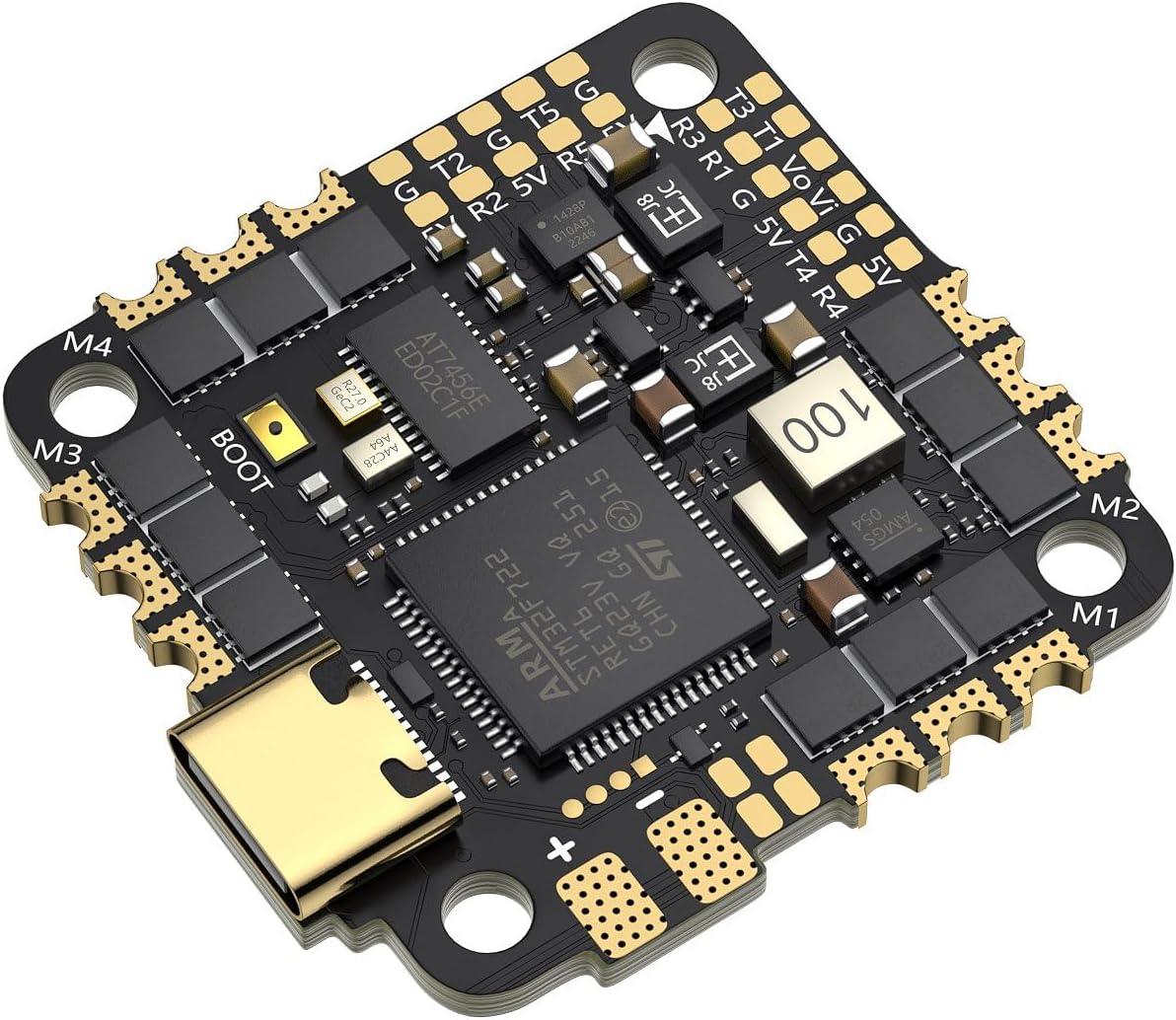

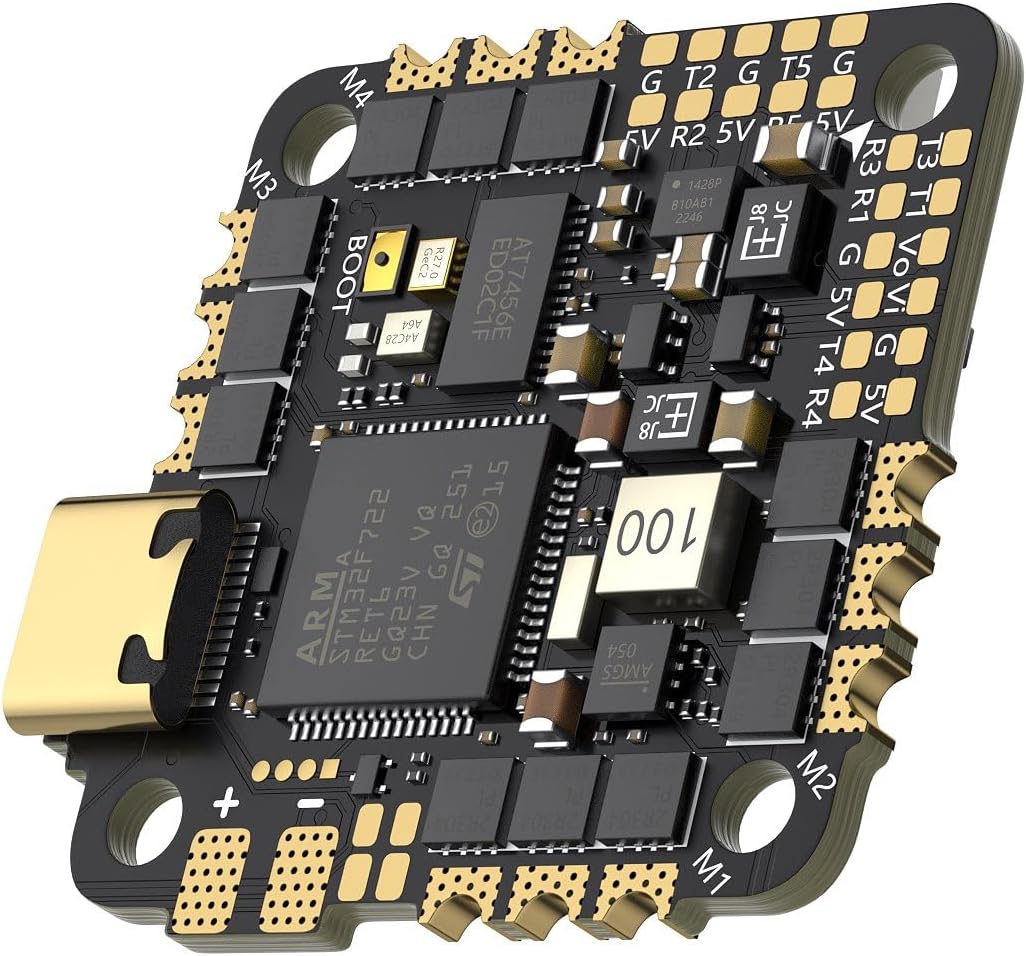

GEPRC TAKER F722 45A 32Bit AIO

SpecificationsModel: TAKER F722 45A 32Bit AIOMCU: STM32F722IMU: ICM 42688-P (SPI）Firmware Target: GEPRC_F722_AIOBlackbox: 16Mb on-board flash memoryOSD: Betaflight OSD w/ AT7456E chipUart: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5Buzzer: YESLED: YESUSB: Type-C USBBEC Output: 5V@1AESC: 32Bit 45AContinuous Current: 45ABurst Current: 55A(10A)Input Voltage: 2~6S (LIPO)ESC Protocol: Dshot600, Oneshot, MultishotDimension: 35mm * 33.5mmMounting Hole Size: 25.5 mm * 25.5mm φM3 damping to M2 screwWeight: 9.2gIncludes1× TAKER F722 45A AIO FC1× XT30-18AWG wire-7cm1× 35V 220μF capacitor1× SH1.0-6Pin to GH1.25-8Pin adapter cable1× SH1.0-6Pin cable8× M2×6.5mm FC dampening balls (black)

• Experience high-speed processing for responsive flight control in your drone or FPV build. Features the precise ICM42688-P gyro for stable flight characteristics and dependable performance.
• Bottom-mounted 6-pin port enables ​direct plug-in installation for HD video transmitters (VTX)​, eliminating soldering hassle. Includes ​5 full UART ports​ for effortlessly adding receivers, telemetry, GPS, and other essential RC drone accessories.
• Run smooth 32-bit ESC protocols for exceptionally fluid throttle control. Compatible with INAV firmware thanks to the integrated barometer. Handles ​2-6S LiPo batteries, delivering ​45A continuous current (55A burst for 10s)​.
• Get essential tools like OSD tuning for real-time adjustments, buzzer, and LED control integrated. Includes a generous ​16MB Blackbox storage​ to log detailed flight data for precise performance analysis and drone tuning.
• Designed as an ​All-In-One (AIO) FC board​ combining high performance (STM32F722 MCU, ICM42688-P gyro) with significant peripheral support (5 UARTs, direct HD VTX) in a remarkably lightweight ​9.2g package.
